Scatter of environments on two PCs, reproducing Fig. 1c of Della Coletta et al. (2023), where each point is one growth environment labelled by its code.
Usage
env_pca_biplot(
x,
pc = c(1, 2),
label = TRUE,
group = NULL,
title = "Environments in PC space",
verbose = TRUE
)Arguments
- x
an
env_pcaobject.- pc
integer vector of length 2. Which PCs to plot. Default
c(1, 2).- label
boolean. Draw environment names. Default
TRUE.- group
factor or named vector. Optional grouping used to colour points, e.g. a mega-environment assignment. Names are matched to environment names.
- title
character. Plot title.
- verbose
boolean. If
TRUE(default) prints a progress banner.
Value
A ggplot object when ggplot2 is available (invisibly), otherwise
NULL after drawing a base plot.
Examples
# \donttest{
pc <- env_pca(env_indices(maizeWTH, end.day = 130))
#> ---------------------------------------------------------------
#> env_pca -- runs PCA on the environmental index matrix
#> Last updated at 09/27/2026
#> ---------------------------------------------------------------
#> ---------------------------------------------------------------
#> env_indices -- builds interval-resolved environmental indices
#> Last updated at 09/27/2026
#> ---------------------------------------------------------------
#> ------------------------------------------------------------
#> env_indices(): 5 environments x 21 factors x 44 intervals = 924 indices
#> interval width : 3 day(s), days 1..130
#> discarded : 106 record(s) outside 1..130
#> ------------------------------------------------------------
#> ------------------------------------------------------------
#> env_pca(): 5 environments x 924 indices
#> informative PCs: 4 (= n.env - 1)
#> PC1 54.3%, PC2 21.1%, cumulative 75.4%
#> ------------------------------------------------------------

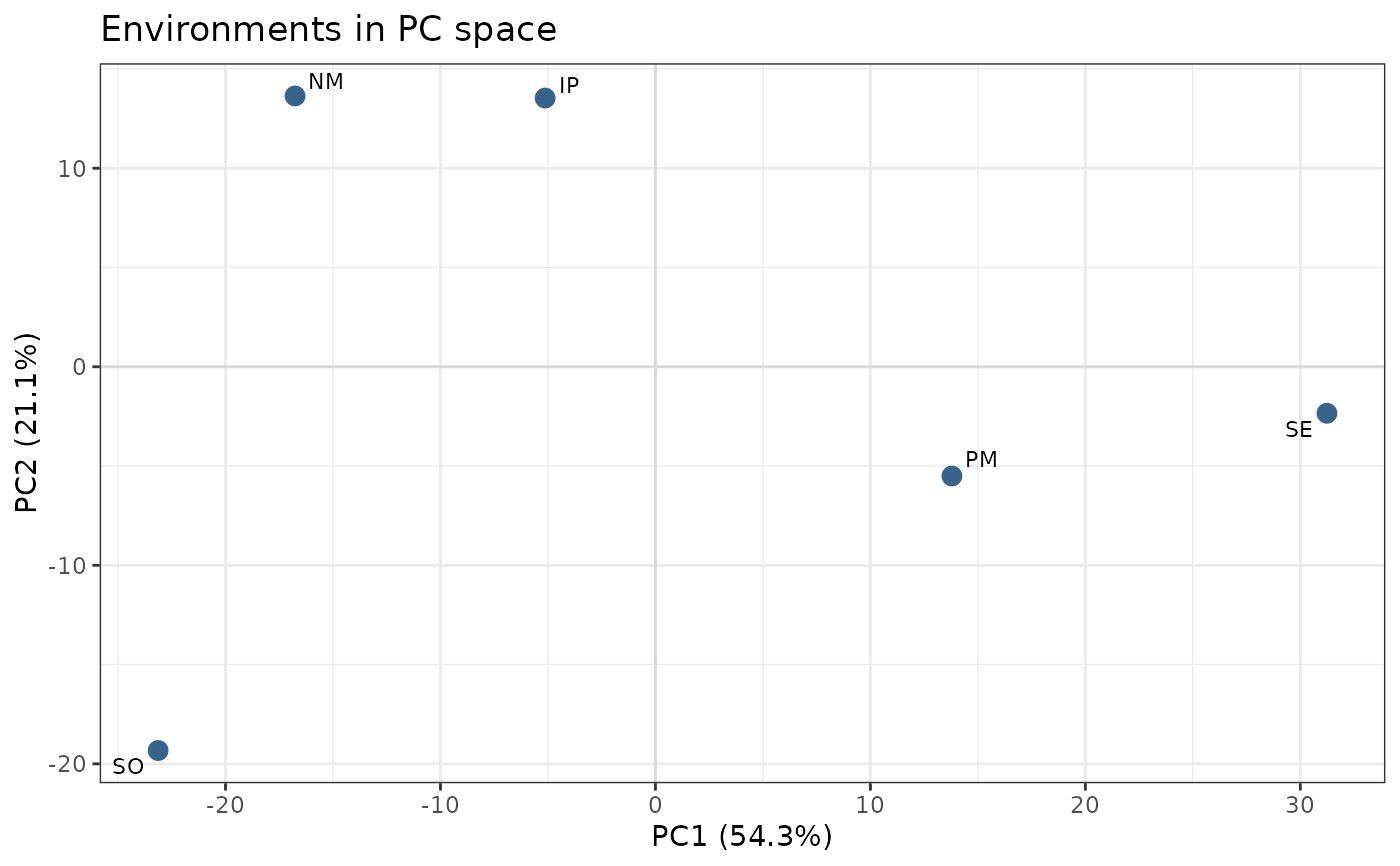

env_pca_biplot(pc)
#> ---------------------------------------------------------------
#> env_pca_biplot -- plots environments in PC space
#> Last updated at 09/27/2026
#> ---------------------------------------------------------------

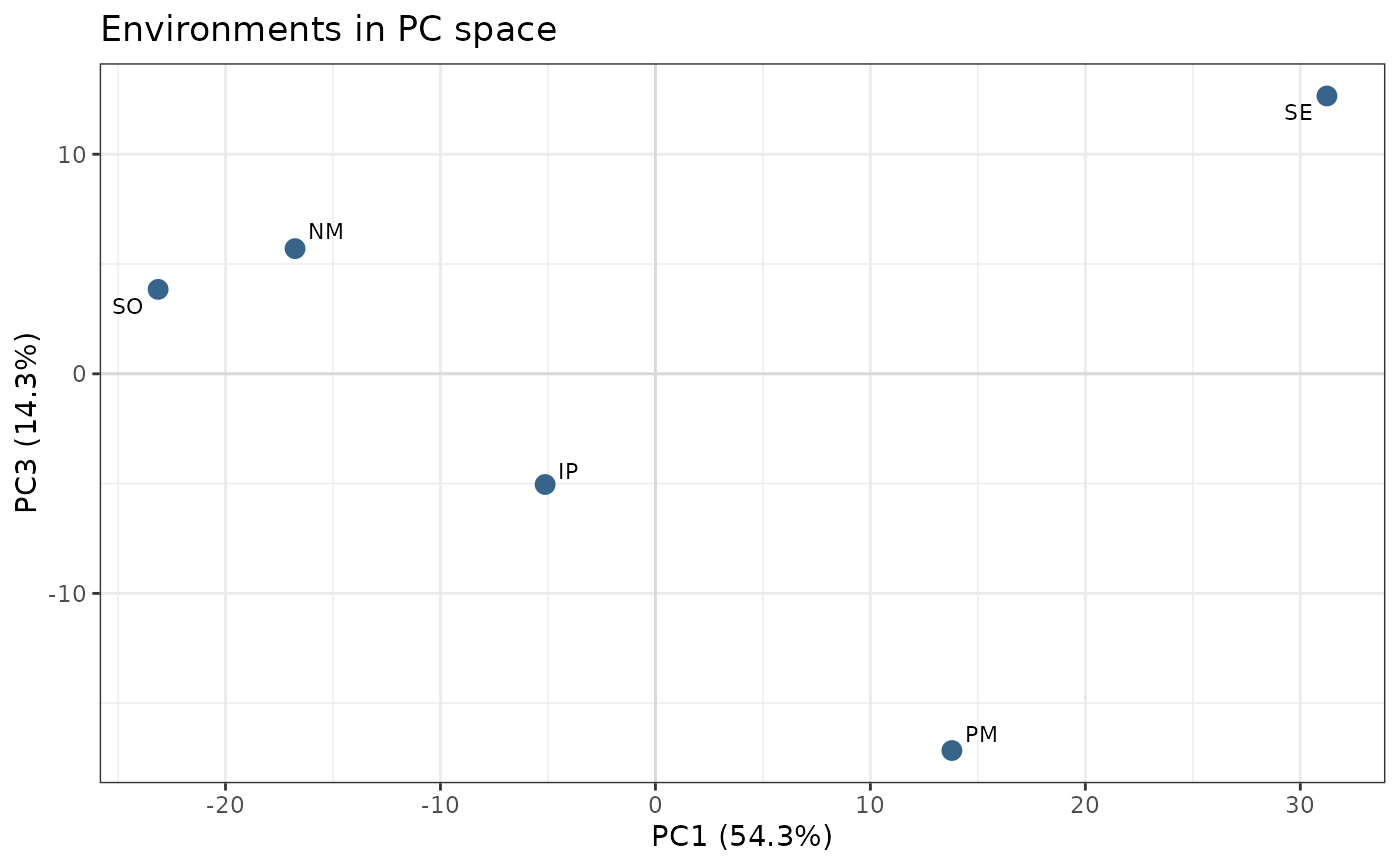

env_pca_biplot(pc, pc = c(1, 3))
#> ---------------------------------------------------------------
#> env_pca_biplot -- plots environments in PC space
#> Last updated at 09/27/2026
#> ---------------------------------------------------------------
# }
